3m QSFP28 To 4x SFP28 100G Breakout Cable OM3 Active Optical

Product Categories
CFOFC Communications Ltd.
Contact Now

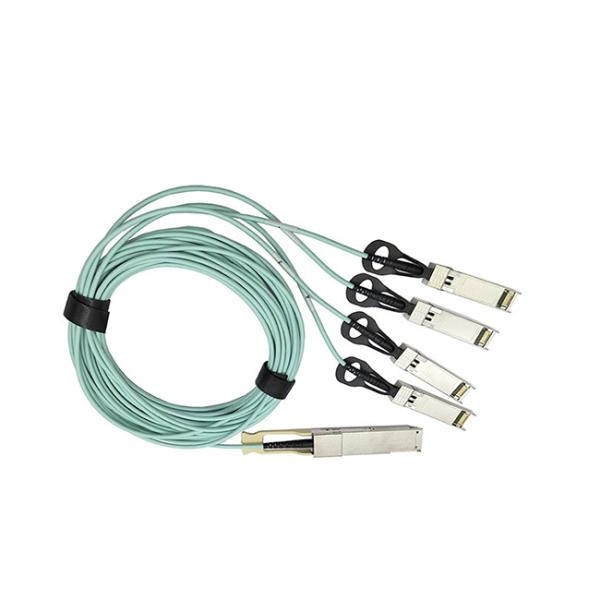

3m QSFP28 To 4x SFP28 100G Breakout Cable OM3 Active Optical

Brand Name : CFOFC

Model Number : CFOFC- QSFP28 4x

Certification : ISO9001/ REACH / ROHS

Place of Origin : Shenzhen, China

MOQ : 10Pcs

Price : Negotiable

Payment Terms : L/C, T/T,Paypal, Western Union

Supply Ability : 3,000,000 pcs per month

Delivery Time : 5-8 work days

Packaging Details : Individual Pack , plus outer cartons

Product name : 100G QSFP28 to 4x SF28 Breakout Cables

Application : Telecommunications,FTTH FTTB FTTX Network,Network

Connector type : QSFP28 to QSFP28

Fiber : OM3

data rate : 100GBASE

Length : 1-100m

Contact Now

100G QSFP28 to 4x SFP28 Breakout Cables 3m OM3 QSFP28 100G Active Optical Cable

Description of Optical Module

100G QSFP28-4*SFP28-AOC active optical cable, integrated four data channels, the total bandwidth of 100Gbps. 4 transmission channels,each channel can run at 25.3125 Gbps. QSFP + to 4x SFP + AOC cables are 100GBase QSFP + hybrid cables. One end is a QSFP + optical connector and the other end is a 4 SFP + optical connector. Transmission distance of not more than 100 meters. The fiber optic cable is a high-performance module for short-range multi-channel data communications and interconnect applications.

Specification of Optical Module

Items Data Rate(bps) Wavelength(nm) Fiber type Distance Optical Tx Power(dBm) Rx Sens.(dBm) Temp.(℃)
QSFP28 SR4 100G 850 8x MMF OM3 70 m VCSEL -6~2.4 -10.3~2.4 0~70
OM4 100 m
QSFP28 IR4 PSM 100G 1310 8x SMF 2 km DML/PIN -8.4~2.4 -11 0~70
QSFP28 CWDM4 100G CWDM 2x SMF 2 km DML/PIN -6.5~2.5 -10~2.5 0~70
QSFP28 IR4 100G LWDM 2x SMF 2 km DML/PIN -6.5~2.5 -10~2.5 0~70
LR4 100G LWDM 2x SMF 10 km DML/PIN -4.3~4.5 -10.6~4.5 0~70
ELR4+ 100G LWDM 2x SMF 20 km DML/PIN -2.5~4.5 -14.5~4.5 0~70
ER4* 100G LWDM 2x SMF 30~40 km EML/APD -2.5~2.9 -20.5~-3.5

0~70

Features of Optical Module

OM3/OM4 MMF optical cable Full duplex 4 channel 850nm parallel active optical cable

Transmission data rate up to 25.3125Gbit/s per channel

SFF-8665 QSFP+ compliant housing and hot pluggable electrical interface

Management Interface and digital diagnostic

monitoring(DDM) through I2C

4ch 850nm 25G VCSEL array

4ch 25G PIN photo detector array

Support serial ID function through EEPROM

Power consumption less than 2.5W

Operating case temperature 0ºC to +70ºC

3.3V power supply voltage RoHS 6 compliant

Application of Optical Module

Switch / router / HBA / SAN, NIC card

Servers and storage devices

Data center network

Fiber Channel

InfiniBand FDR/EDR 100Gbs

Ethernet

3m QSFP28 To 4x SFP28 100G Breakout Cable OM3 Active Optical3m QSFP28 To 4x SFP28 100G Breakout Cable OM3 Active Optical3m QSFP28 To 4x SFP28 100G Breakout Cable OM3 Active Optical
The reason why Choose us

1. On time delivery
2. Factory outlet
3. Customization
4. Large product inventory with massive production line
5. Product distribution involves multi-fields, dozens of countries including some developed countries.
FAQ

1. How can I get your catalogue and price list?
Please let us know your email or contact us from website directly for our catalogue and price list.

2. Can you offer free samples?
Yes. we can provide free sample, but you should bear the shipping cost. It will return after you place the order from us.

3. How much will the shipping cost be?
It depends on the weight, volume and mode of transportation of your goods. We will choose the most suitable method according to your requirements.

4. Can you supply OEM products under our brand?
Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.

5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
